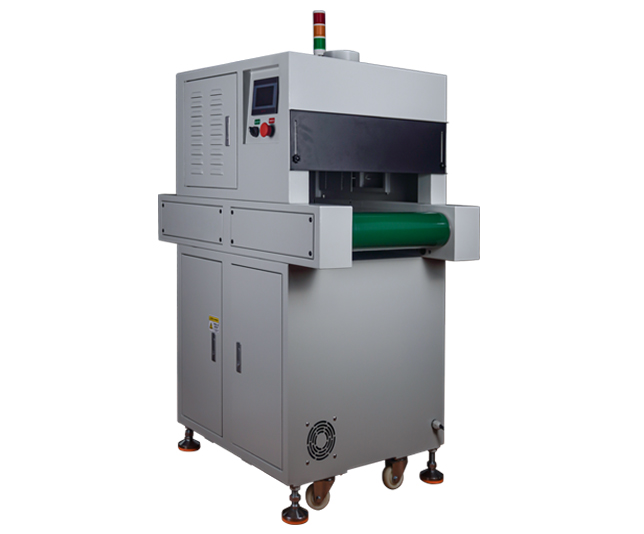

UV uv curing machine(400*200mm)

I. Equipment features

1. the equipment supports UVLED temperature real-time monitoring, UVLED failure alarm function and energy saving protection function.

2. uv curing machine equipment to provide continuous mode and fixed irradiation mode optional, continuous mode, click the start button, UV machine conveyor belt and UVLED has been working, click the stop button to stop the UV machine work; fixed irradiation mode, click the UV uv curing machine start button, UV machine conveyor belt began to work, when the material inspection sensor senses the product, the conveyor belt stops, UVLED Start irradiation and timing, timing to the conveyor belt to start, N seconds without checking the product (time can be set), UVLED off, otherwise UVLED to keep running.

3. ultraviolet uv curing machine equipment with digital dimming, delayed shutdown fan heat fan, history of irradiation time query and other functions.

Second, the light source characteristics

1. high efficiency and energy saving

UVLED output band concentration, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high productivity.

2、Wide range of application

UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, ultraviolet uv curing machine is suitable for all kinds of heat-sensitive materials curing.

3. long life

UVLED long life, reduce the investment cost of equipment. That is on and off, no need to warm up, the number of switches does not affect the service life.

4、Green

Comply with RoHS, does not contain mercury.
