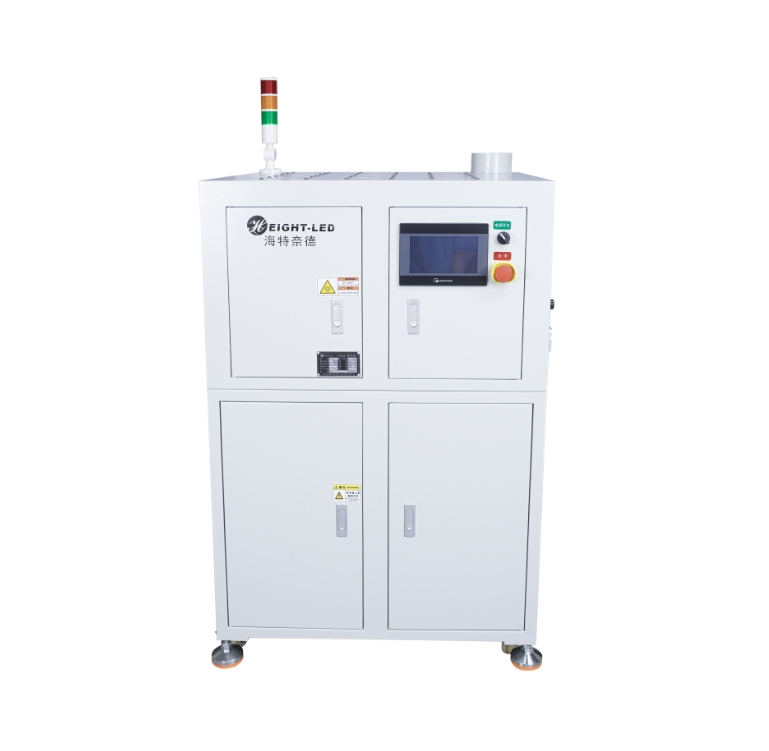

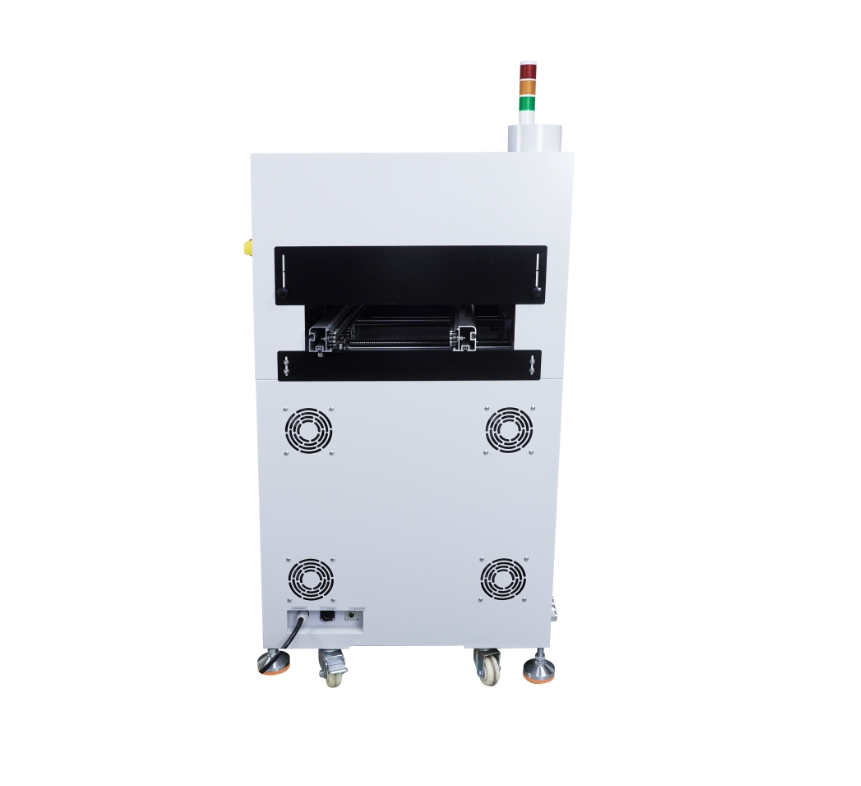

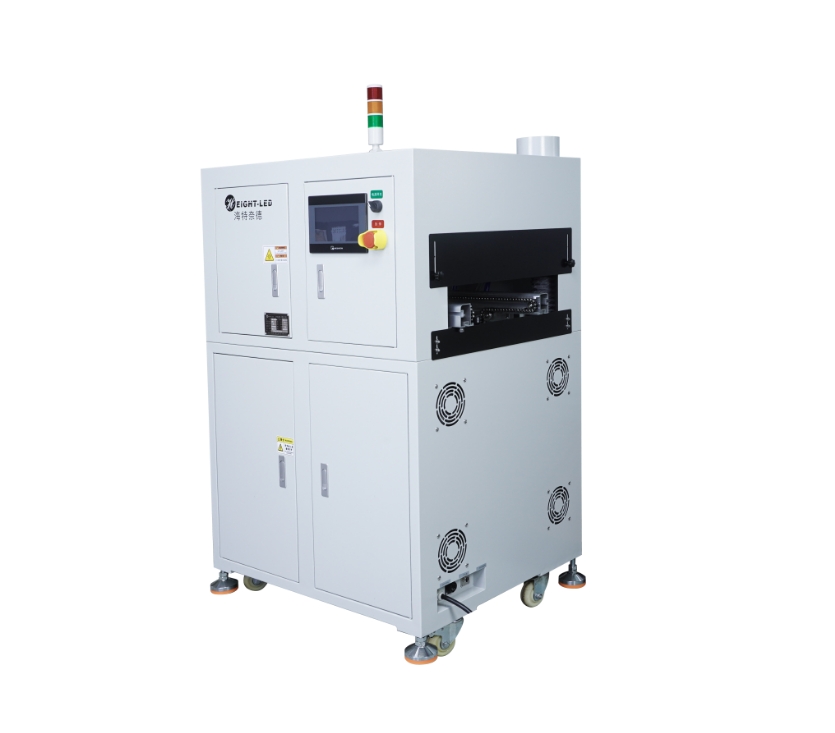

Model HTCC-II-SS320200-NH UVLED curing machine light-emitting area of 320mmx200mm, the wavelength of the device is 365nm.
I. Equipment features
1. The equipment supports real-time monitoring of UVLED current, UVLED fault alarm function and energy-saving protection function.
2. equipment to provide online mode and stand-alone mode optional, online mode, the machine through the SMEMA communication mode, with the upper and lower computer for material docking and curing, stand-alone mode, click the start button, UV machine conveyor belt and UVLED has been working (UVLED can be shielded), click the stop button, the conveyor belt and the UVLED stop working.
3. The equipment has digital dimming, delayed shutdown fan heat fan, history of irradiation time query and other functions.
Second, the light source characteristics
1. Energy efficient
UVLED's output band is concentrated, high photoelectric conversion rate, energy saving and power saving, fast curing speed and high productivity.
2. Wide range of application
UVLED is a cold light source, low infrared heat radiation, will not cause work thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.
3. Long life
UVLED has a long service life, reducing the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.
4. Green
RoHS compliant, no mercury.
