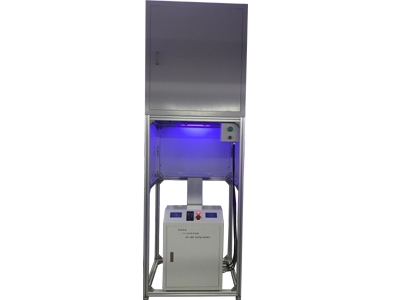

Automatic lifting UVLED curing machine

Model:HTLD-SZD644-365

UVLED automatic lifting curing machine, instead of the traditional mercury lamp, built-in UVLED curing light source, through the automatic lifting platform to complete the product from top to bottom and bottom to top curing process. With infrared sensor limit control, on-demand control of the automatic platform lifting stroke and UVLED lighting and extinguishing, lifting speed adjustable. Low temperature, no ozone, no deep UV, low energy consumption, high efficiency.


Product SurveySpecification ParameterProduct Dimension Drawing

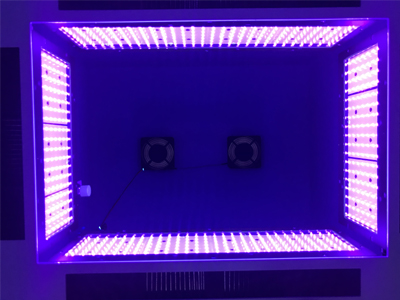

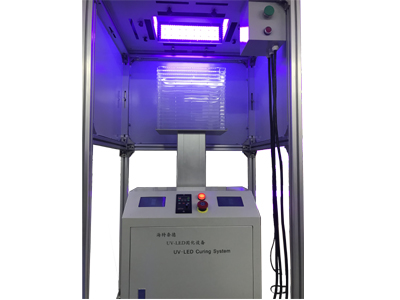

  UVLUE Curing Machine (Model: HTLD-SZD644-365) is a high-performance UVLED front, back, left, right and four-side light source curing system designed for UV adhesive curing. The system mainly includes control system, UVLED irradiation head and automatic lifting platform. The machine UVLED irradiation head using imported high-intensity UV LED integration, UV spectral wavelength of 365nm, the use of forced air-cooled heat dissipation, the formation of a three-dimensional L330 * W200 * H80 closed curing area; through the automatic lifting platform to complete the product from the top to the bottom and the bottom to the top of the curing process. With infrared sensor limit control, on-demand control of the automatic platform lifting stroke and UVLED lighting and extinguishing, lifting speed adjustable.
